DC Board Power Supply
Features
Products Features
-Stable DC Power Output Converts AC input into stable DC voltage required by vending machine components such as motors, control boards, and sensors.
-Multiple Output Voltage Supports multiple output channels (e.g., 24V, 12V, 5V) to power different modules in the vending machine.
-High Efficiency Power Conversion Designed with high-efficiency switching technology to reduce power loss and improve system performance.
-Overload & Short Circuit Protection Built-in protection functions such as over-current, over-voltage, and short-circuit protection to ensure safe operation.
-Reliable Industrial Design Industrial-grade components provide long service life and stable operation in vending machine environments.
-Easy Integration Standard connectors allow easy installation with vending machine mainboards, motors, and payment systems.
-Continuous Operation Support Designed for 24/7 operation required by automated retail machines.
Description
Products Description

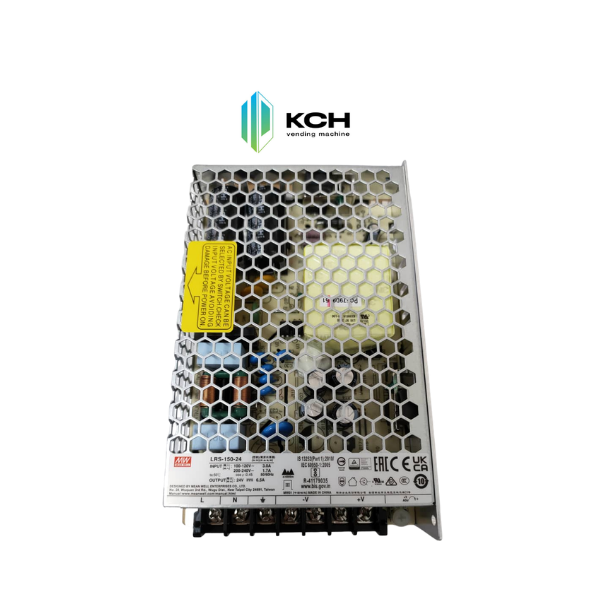

The Vending Machine DC Board Power Supply is a power management module designed to provide stable DC voltage for vending machine systems. It converts AC input power from the main electrical source into regulated DC outputs required by internal components such as the main control board, payment devices, motors, displays, and sensors.
This DC power board ensures consistent voltage regulation and protects sensitive electronic components from power fluctuations, overload, or short circuits. It is widely used in snack vending machines, beverage vending machines, and smart retail machines to maintain stable machine performance and reliable operation.
The module typically supports multiple DC outputs such as 24V, 12V, and 5V, enabling different machine subsystems to operate simultaneously while maintaining efficiency and safety
Specifications
Item Specification
Product Name – Vending Machine DC Board Power Supply
Power Type – AC to DC Switching Power Supply
Input Voltage – 100 – 240V AC
Input Frequency – 50 / 60 Hz
Output Voltage – 24V / 12V / 5V DC
Output Current – 4A – 8A (depending on model)
Output Power – Up to 200W
Protection – Over Voltage / Over Current / Short Circuit / Over Temperature
Cooling Method – Air Cooling / Natural Cooling
Operating Temperature – -20°C to 60°C
Application – Vending Machine, Self-Service Kiosk, Automated Retail Equipment
Installation – Internal DC power module
